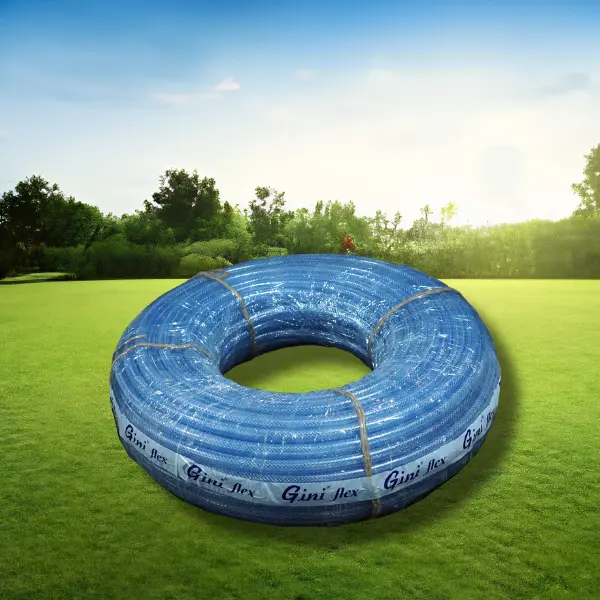

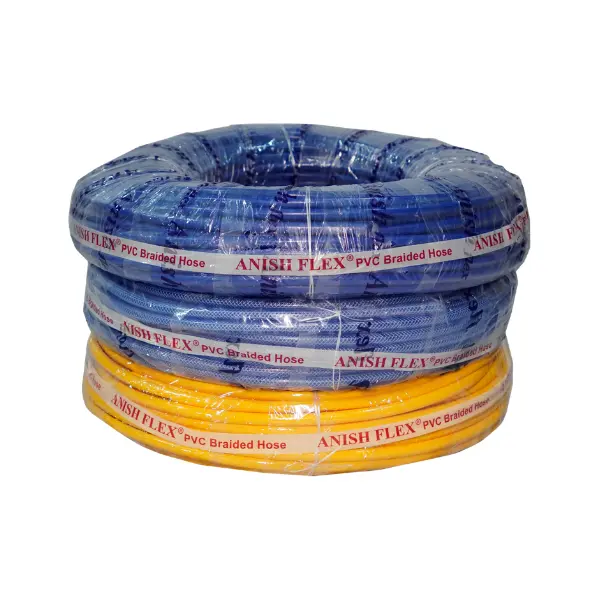

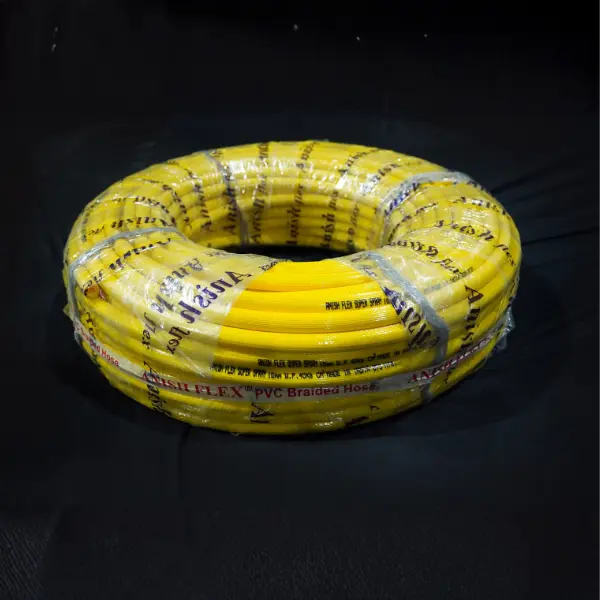

Our PVC Nylon Braided Hose offers far higher pressure capability than standard reinforced PVC tubing. Made from non-toxic ingredients conforming to USP Class VI and FDA standards, it features a mirror-smooth interior for outstanding flow characteristics, abrasion resistance and flexibility.
Lightweight and easy to handle, it does not crack under use or when stored for long periods. The PVC construction ensures a smooth surface that allows better flow of fluid, with clear transparency enabling quick detection of any air locks or blockages. At 50% cheaper than rubber hose, it is the cost-effective choice for a wide range of applications.
Reinforced Braided Structure
Flexible & Easy to Handle
Chemical & Shock Resistant
Virgin PVC Material
Crack, Leak & Burst Resistant
Transparent Body
Smooth Inner Surface
Long Service Life
| Size (mm) | Size (Inch) | Wall Thickness (mm) | Working Pressure (kg/cm²) | Coil Length (Mtrs) |
|---|---|---|---|---|
| 6 | 1/4" | 3 | 25 | 100 |
| 8 | 5/16" | 3 | 25 | 100 |
| 10 | 3/8" | 3.5 | 25 | 100 |
| 12 | 1/2" | 3.5 | 20 | 100 |
| 15 | 5/8" | 3.5 | 20 | 100/50 |
| 20 | 3/4" | 4 | 20 | 100/50 |
| 25 | 1" | 4.8 | 15 | 100/50 |
| 31 | 1 1/4" | 4.8 | 15 | 50/30 |
| 40 | 1 1/2" | 5 | 15 | 50/30 |
| 50 | 2" | 6 | 10 | 50/30 |
| Size (mm) | Size (Inch) | Working Pressure (kg/cm²) | Coil Length (Mtrs) |
|---|---|---|---|
| 8 | 5/16" | 20 | 100 |
| 10 | 3/8" | 18 | 100 |
| 12 | 1/2" | 16 | 100 |
| 15 | 5/8" | 13 | 100/50 |
| 20 | 3/4" | 13 | 100/50 |
| 25 | 1" | 12 | 100/50 |
| 31 | 1 1/4" | 10 | 50/30 |
| 40 | 1 1/2" | 9 | 50/30 |
| 50 | 2" | 8 | 50/30 |
Agricultural & Air/Gas Lines

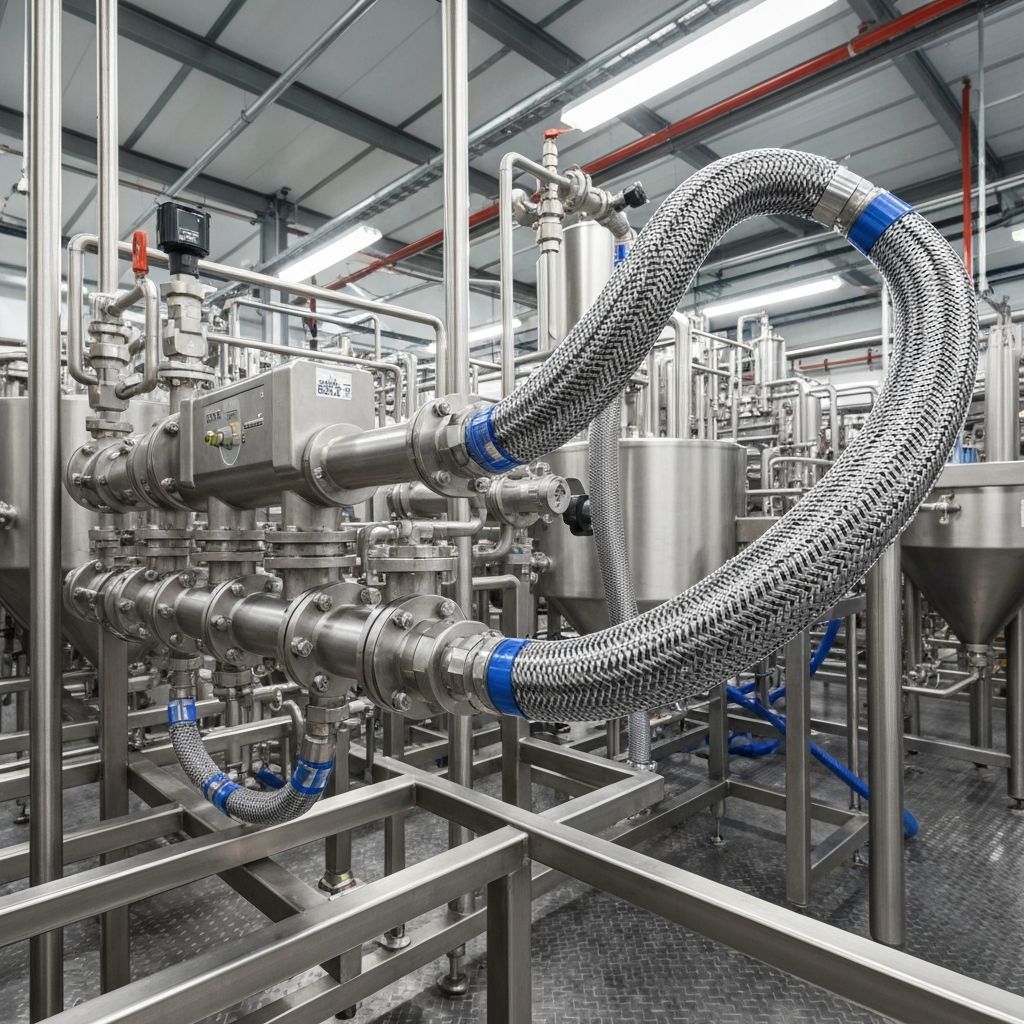

Beverage Transfer
Chemical Processing
Laboratory & Research
General Water Suction & Discharge
Pharmaceutical Manufacture
Pools, Spas & Refrigeration
Household Water Supply
The inner PVC tube is reinforced with braided nylon yarn, which increases tensile strength and improves pressure handling significantly.
